Product Description
Prismatic Cell Notching & Winding Integrated Machine
The equipment is used for tab notching and winding of anode & cathode electrodes and separators in prismatic cell production.
-

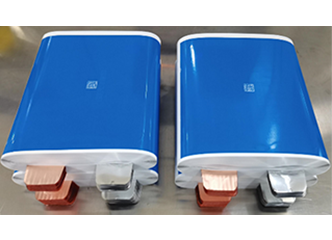

Prismatic Aluminum-Case Wound Cell -

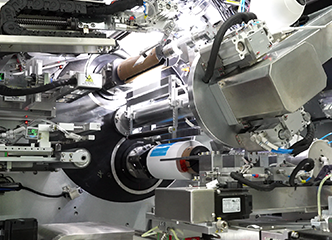

Winding module -

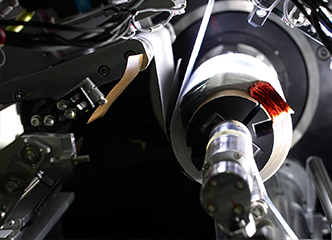

Mandrel module -

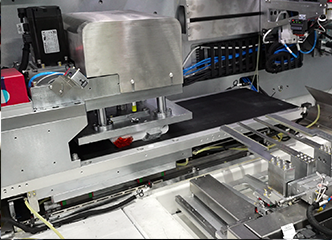

Pre-pressing module
ADVANTAGE
Product Advantages
-
Mandrel is driven by a DD motor with speed fluctuation ≤0.2%.
-
Multi-level EPC, forming a closed-loop control with CCD inspection.
-
High-performance motion controller and advanced technology from Omron.
-
Dynamic cross-cutting for incoming electrode.
-
Multiple dust removal system with high efficiency.
-
Tension control by high-response motor, forming a closed loop with high-precision inspection sensor.
-
Basic Information
- Efficiency:≥5 PPM（EA length=16000 mm)
- Compatible cell width:100–320 mm
- Compatible cell height:70–310 mm（including tabs）
- Electrode roll diameter:≤Φ1000 mm
- Separator roll diameter:≤Φ400 mm
-
Product Performance
- Tension fluctuation:≤±3%*set value
- Alignment:≤±0.3 mm
- Tab mismatch≤±3 mm
- HAZ (Al):<100 μm
- HAZ(Cu):<120 μm
- Burr:<<20 μm
- Notching dimensional accuracy:±0.2 mm
