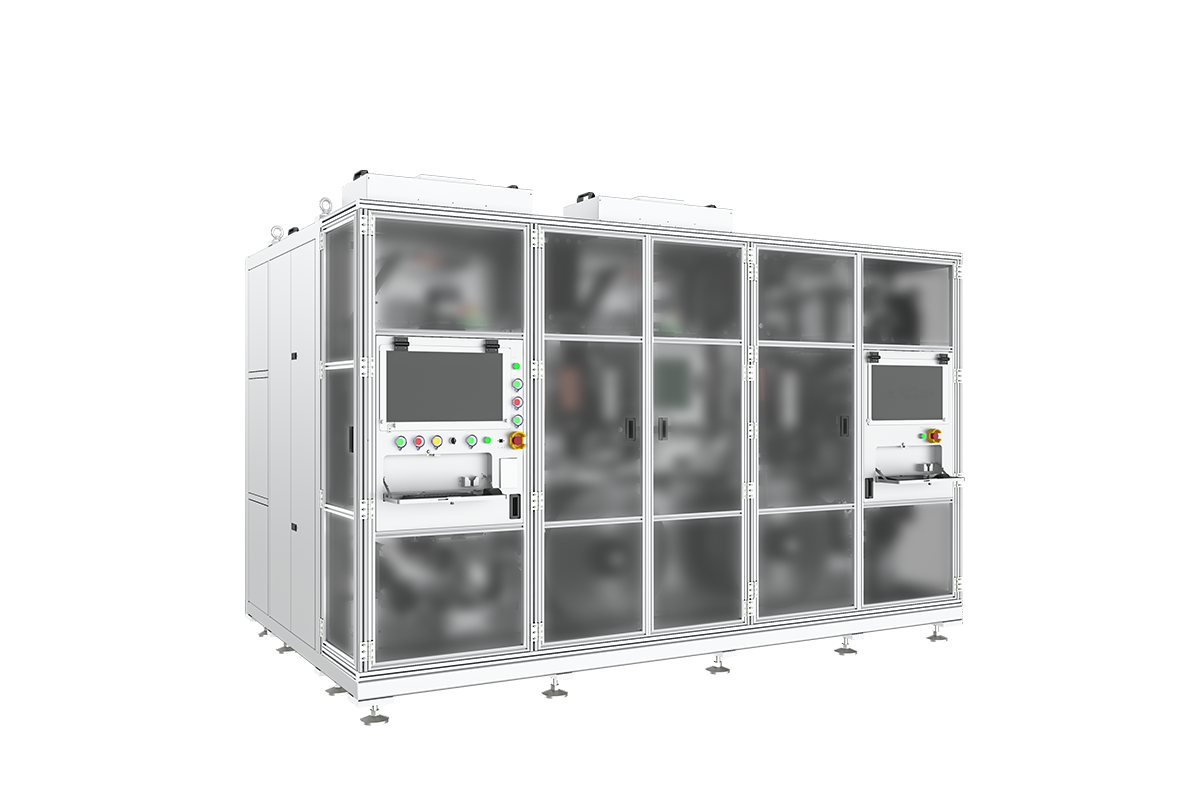

Single-Lane Laser Ablation Machine

OVERVIEW

Product Description

Single-Lane Laser Ablation Machine

The equipment is used for the ablation of the anode welded-tabs without causing any damage, wrinkle or pinhole.

ADVANTAGE

Cantilever supporting structure with large plate on single side
Highly accurate feeding unit
Time-sharing laser ablation system
High tension control accuracy enabled by multi-section electrode buffering system and tension control system;
Compatible with A-A, A-B, B-B side ablation
Multiple dust removal system with high efficiency

Basic Information
- Efficiency：≥18ppm
- Compatible width：≤200mm
- Roll diameter (UW/RW)：≤Փ500mm
- Compatible electrode length：300-2000mm
Product Performance
- Pattern size accuracy：±0.2mm
- Mismatch (A/B side)：±0.3mm
- Residue：≤0.1mm
- Pinhole diameter：≥0.1mm²，＜5ea/pcs
